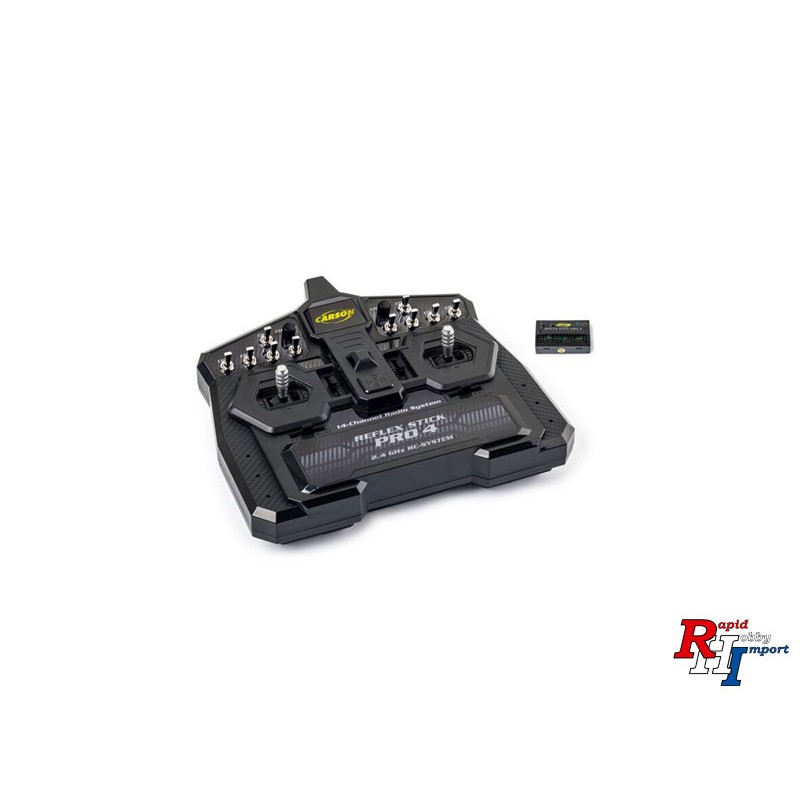

FS 14K Reflex Stick 4 Pro 2.4 GHz

Carson 501022 FS 14K Reflex Stick 4 Pro 2.4 GHz

Carson Number: 501022

EAN: 4005299017674

14-channel remote control,
15-channel receiver
and instructions

Features:
1. Four continuously adjustable, fully proportional channels
2. Channels 7, 8, 9, 10, 13, 14 via 3-position toggle switch
3. Channels 5, 6, 11, 12 via 3-position button with centre position
4. Servo reverse (reversal of direction of travel channels 1-4)
5. Trim function for channels 1-4
6. Dual rate channels 1 and 4 (servo travel limit)
7. 100% compatible with TAMIYA MFC 01/02/03 and DMD unit
8. Failsafe system
9. Stick assemblies with sensitive mechanics
10. Modern ergonomic RC housing
11. Stick assemblies with sensitive mechanics
12. Modern, ergonomic RC housing
13. Logo illumination when switched on
14. Surface with an elegant carbon look

Technical details:
• Transmitter operating voltage 4.8 - 6 V (4 AA cells)
• Receiver power supply (without BEC) up to 11 V possible
• Graupner J/R connector system

Recommended accessories:

15-channel receiver
Item no. 500501552

AA battery set
Item no. 50609092

CS-6 standard size servo JR/MG/WP/0.2
Item no. 500502041

Reflex 6/14Ch Switch 2 (2x2.5A, max. 16V)
Item no. 500503060

Reflex 6/14Ch Switch 4 (4x2.5A, max. 16V)
Item no. 500503061
