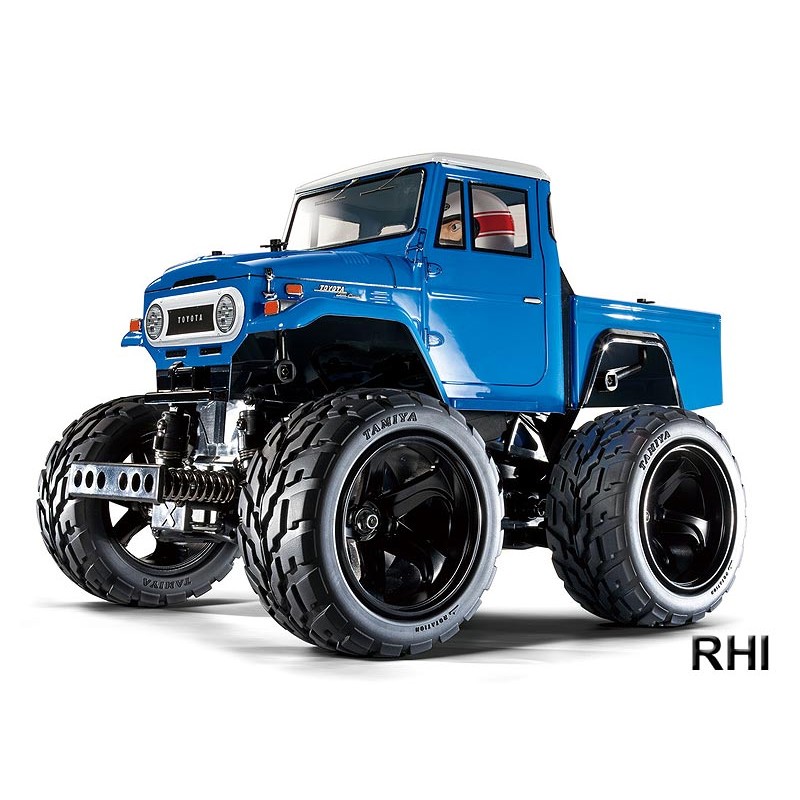

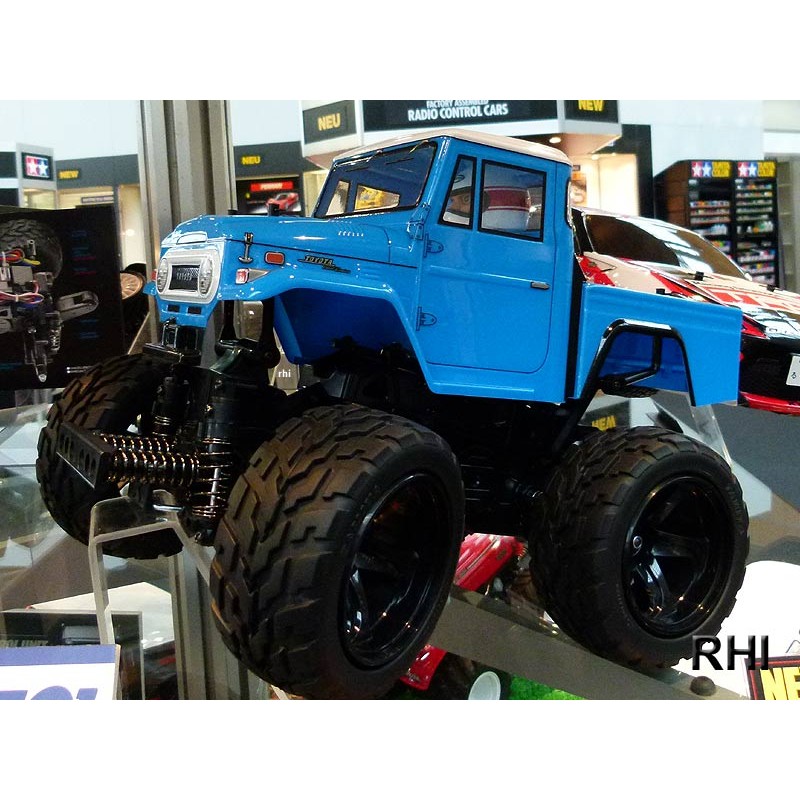

1/10 Toyota Land Cruiser 40 Pick-Up GF-01
This is the NEW GF-01 chassis platform. The first model to be featured on the chassis is a pick-up version of the Toyota Land Cruiser 40, a world-famous off-road vehicle that needs little introduction. It was produced for almost 25 years and much loved for its durability and adaptability. The GF-01 chassis plays off the successful and fun line-up of RC kits such as the Wild Willy 2, Volkswagen Type 2 and the Farm King Wheelie. Whereas those kits featured a 2WD and easy to wheelie platform, the new GF-01 is a 4WD incarnation with the motor directly placed in the center in order to drive the gears in the front and rear gearboxes.
- Scale : 1/12
- Construction type : assembly kit
- Terrain use : multi-purpose
- Drive-train : 4WD
- Drive type : gearbox
- Drive line : dog bone
- Differential type : gear
- Suspension : fully independent double wishbone
- Steering mechanism : bell-crank
- Shock damper : friction damper
- Shock damper material : plastic
- Tire type : rubber
- Tire tread : block- pattern
- Body material : Polycarbonate
- Chassis material : plastic
- Electronic Speed Control (ESC) : included
- ESC model : TBLE-02S
- LED Light buckets : no
- LED lights : no
- Motor : 540-brushed type
- Bearings : plastic bushing
- Adjustable camber : fixed
- Adjustable toe angles : front only
- Adjustable ground clearance : yes
- Adjustable gear ratio : yes
- Adjustable wheelbase : fixed
- Adjustable track width : fixed
- Adjustable shock angle : fixed
- Special feature 1 : Length: 333mm, width: 244mm, height:242mm
- Special feature 2 : The polycarbonate body accurately recreates the form of the Land Cruiser 40 with pick-up style rear end.

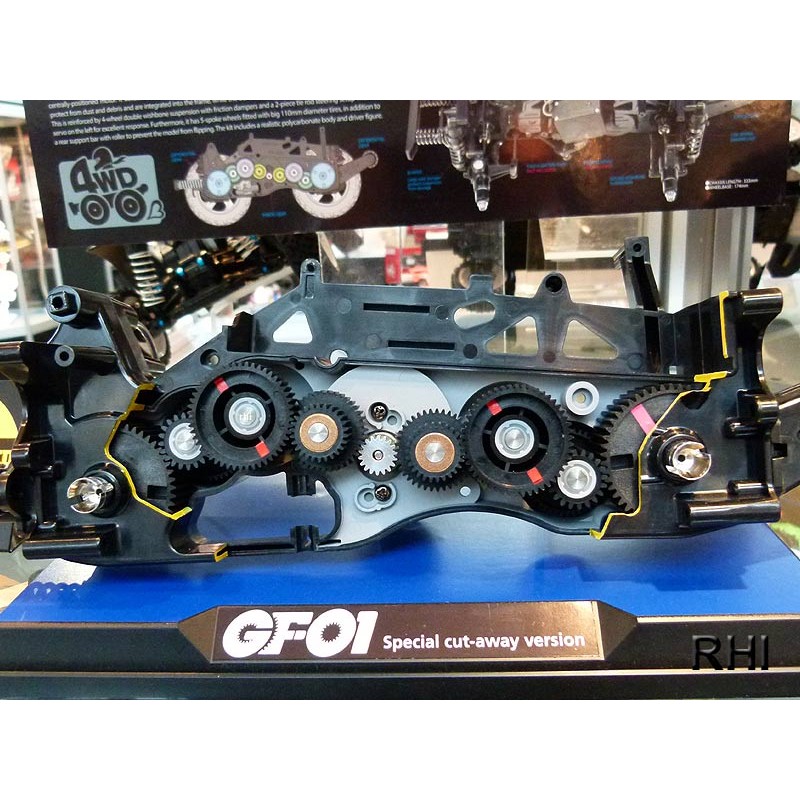

- Special feature 3 : Uses front and rear differentials in a sealed gearbox integrated in the frame.
- Special feature 4 : 4-wheel double wishbone suspension utilizes friction dampers.
- Special feature 5 : 5-spoke metal-plated wheels are fitted with massive 110mm-diameter tires.
- Special feature 6 : A driver figure is included.
- Special feature 7 : Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors)
- Special feature 8 : Includes 540 Torque Tuned motor.
- Requires A : 2-channel radio gear
- Requires B : 7.2 battery & charger
- Requires C : polycarbonate paint
Tamiya nummer: 58589
